Überspannungsschutz-Geräte für Straßenbeleuchtungen

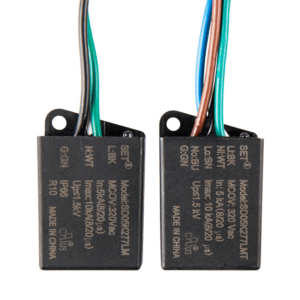

SD05K series
Max. Continuous Operating Voltage (U_c): 150 / 320 / 420 VAC
Nominal Discharge Current (I_n) (8 / 20 μs): 5 kA
Max. Discharge Current (I_max) (8 / 20 μs): 10 kA
Download PDF

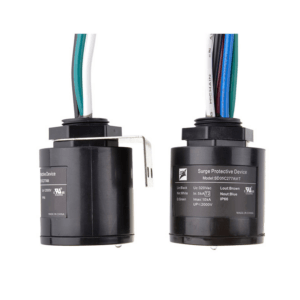

SD05C series
Max. Continuous Operating Voltage (U_c): 150 ~ 550 VAC
Nominal Discharge Current (I_n) (8 / 20 μs): 5 kA
Max. Discharge Current (I_max) (8 / 20 μs): 10 kA
Download PDF
SD10C series
Max. Continuous Operating Voltage (U_c): L-N: 150 ~ 550 VAC
ominal Discharge Current (I_n) (8 / 20 μs): 10 kA
Max. Discharge Current (I_max) (8 / 20 μs): 15 / 25 kA
Download PDF
SD10K series
Max. Continuous Operating Voltage (U_c): 300 / 320 / 385 VAC
Nominal Discharge Current (I_n) (8 / 20 μs): 10 kA
Max. Discharge Current (I_max) (8 / 20 μs): 20 kA
Download PDF

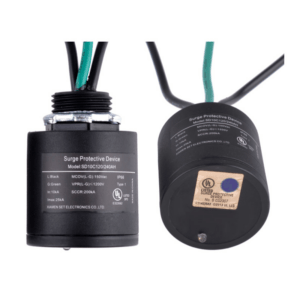

SD10C120/240 series
Max. Continuous Operating Voltage (U_c): 150 / 300 VAC
Nominal Discharge Current (I_n) (8 / 20 μs): 10 kA
Max. Discharge Current (I_max) (8 / 20 μs): 15 / 25 kA
UL 1449 Type 1 SPD
Download PDF
