Überspannungsschutz
-
SD10C series
Max. Continuous Operating Voltage (Uc): L-N: 150 ~ 550 VAC
ominal Discharge Current (In) (8 / 20 μs): 10 kA
Max. Discharge Current (Imax) (8 / 20 μs): 15 / 25 kA -
SD20/30R series, T2
Uc: 385 VAC
In (8/20μs): 20/30 kA
Imax (8/20μs): 40/60 kA
Protection Mode: 4+0 (L/N-PE) -
SM34SxxxP1 Serie
VAC: 30V … 460V
VDC: 38V … 100V
In(8/20µs): 10kA … 20kA
Imax(8/20µs): 20kA … 40kA
Protection Mode: 1+1 (L – N, N – PE) / (+ – -, – – PE) -
SFV 34S H Serie
Disc Size: 34mm
VAC: 150V … 750V
VDC: 200V … 1000V
Imax: 50kA
-40°C … +85°C/+105°C -
SFV34S Serie
Disc Size: 34mm
VAC: 30V … 750V
VDC: 38V … 1000V
Imax: 20kA … 40kA
-40°C … +85°C -
TFMOV34S Serie
VAC: 30V … 750V
In(8/20µs): 10kA … 20kA
Imax(8/20µs): 20kA … 40kA -
TFMOV34SxxxL Serie
VAC: 30V … 420V
In(8/20µs): 10kA … 20kA
Imax(8/20µs): 20kA … 40kA -
YMJ34S Serie
Disc Size: 34mm
VAC: 50V … 750V
VDC: 65V … 1000V
Imax: 40kA -
TFMOV25S Serie
VAC: 17V … 750V
In(8/20µs): 3kA … 10kA
Imax(8/20µs): 6kA … 25kA -
SD10K series
Max. Continuous Operating Voltage (Uc): 300 / 320 / 385 VAC
Nominal Discharge Current (In) (8 / 20 μs): 10 kA
Max. Discharge Current (Imax) (8 / 20 μs): 20 kA -

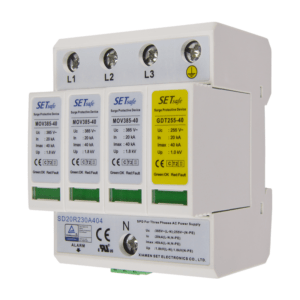

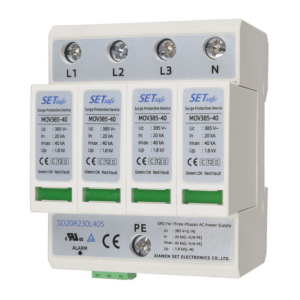

SD20/30R series, T2
Uc: L-N: 385 VAC, N-PE: 255 VAC
In (8/20μs): 20/30 kA
Imax (8/20μs): 40/60 kA
Protection Mode: 3+1 (L-N, N-PE) -
SM34SxxxP2 Serie
VAC: 40V … 350V
VDC: 56V … 85V
In(8/20µs): 10kA … 20kA
Imax(8/20µs): 20kA … 40kA
Protection Mode: 2+1 -
TFMOV40K Serie
VAC: 50V … 750V
In(8/20µs): 30kA … 40kA
Imax(8/20µs): 60kA … 100kA -
SD10C120/240 series
Max. Continuous Operating Voltage (Uc): 150 / 300 VAC
Nominal Discharge Current (In) (8 / 20 μs): 10 kA
Max. Discharge Current (Imax) (8 / 20 μs): 15 / 25 kA
UL 1449 Type 1 SPD -
SD20S series, T2
Uc: 385 VAC
In (8/20 μs): 20 kA
Protection Mode:
2+0 (L / N – PE), 1+1 (L-N, N-PE) -
SM20(30)M230L205 Serie
VAC: 385V
In(8/20µs): 20kA … 30kA
Imax(8/20µs): 40kA … 60kA
Protection Mode: 2+1 (L/N – PE)
IEC/EN 61643-11 Class II -
SFV53D Serie
Disc Size: ∅ 53mm
VAC: 50V … 750V
VDC: 65V … 990V
Imax: 70kA
-40°C … +125°C -

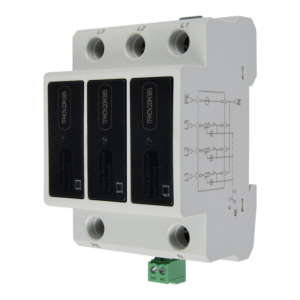

SD20S series, T2
Uc: 385 VAC
In (8/20 μs): 20 kA
Protection Mode:
4+0 (L / N – PE), 3+1 (L-N, N-PE) -
SM20(30)M230L306 Serie
VAC: 385V
In(8/20µs): 20kA / 30kA
Imax(8/20µs): 40kA / 60kA
Protection Mode: 3+0 (L – PE) / (L – N) -
SD20S series, T2
Uc: L-N: 385 VAC
In (8/20 μs): 20 kA
Imax (8/20 μs): 40 kA
Protection Mode:
3+1 (L-N, N-PE) -
SM20(30)M230A404 Serie
VAC: 385V
In(8/20µs): 20kA / 30kA
Imax(8/20µs): 40kA / 60kA
Protection Mode: 3+1 (L – N, N – PE) -

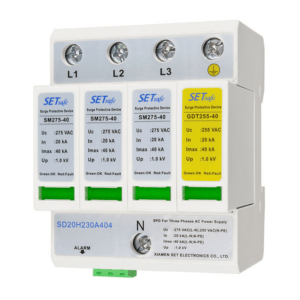

SD20H230A404, T2
Uc: L-N: 275 VAC
In (8/20 μs): 20 kA
Imax (8/20 μs): 40 kA
Up: 1.0 kV
Protection Mode:
3+1 (L–N, N-PE) -
SM15MxxxA203 Serie
VAC: 320V / 385V
Iimp(10/350µs): 4kA
In(8/20µs): 15kA
Imax(8/20µs): 40kA
Protection Mode: 1+1 (L – N, N – PE) -

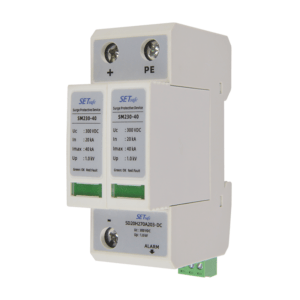

SD20H270A203-DC, T2
Uc: 300 VDC
In (8/20μs): 20 kA
Imax (8/20μs): 40 kA
Up: 1.0 kV
Protection Mode: + — -, – — PE -
SM20MxxxA203 Serie
VAC: 320V / 385V
In(8/20µs): 20kA
Imax(8/20µs): 40kA
Protection Mode: 1+1 (L – N, N – PE) -

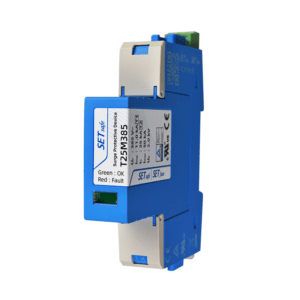

SD25TxxxL100, T1+T2
Uc: 150 … 680 VAC
Iimp (10/350 μs): 5 … 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 40 kA
Protection Mode: 1P (Ld – Ld) -
SM08B230N203 Serie
VAC: 320V
In(8/20µs): 20kA
Iimp(10/350µs): 8kA
Protection Mode: 1+1 (L – N, N – PE) -

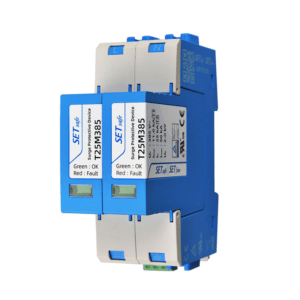

SD25TxxxL205, T1+T2
Uc: 150 … 550 VAC
Iimp (10/350μs): 7.5 … 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 50 kA
Protection Mode:
2+0 (L / N – PE) -

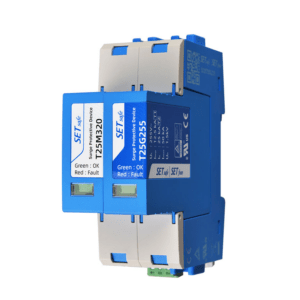

SD25TxxxA203, T1+T2
Uc: L-N: 150 … 385 VAC
Iimp (10/350μs): 11 … 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 50 kA
Protection Mode: 1+1 (L–N, N-PE) -

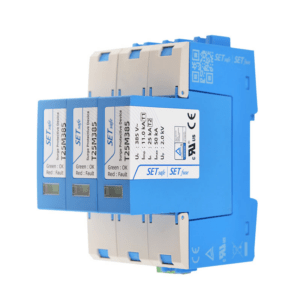

SD25TxxxL306, T1+T2
Uc: 150 … 680 VAC
Iimp (10/350μs): 5 … 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 50 kA
Protection Mode: 3+0 (L – PE) -
SD25TxxxL306, T1+T2
Uc: 880 / 1300 VAC
Iimp (10/350μs): 5 / 10 kA
In (8/20μs): 25 kA
Imax (8/20 μs): 50 kA
Protection Mode: 3+0 (L – PE) -

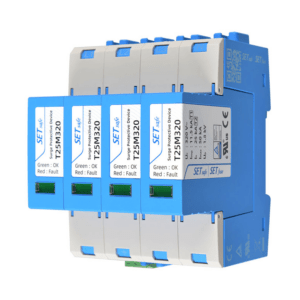

SD25TxxxL405, T1+T2
Uc: 150 … 680 VAC
Iimp (10/350μs): 5 … 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 50 kA
Protection Mode: 4+0 (L/N-PE) -

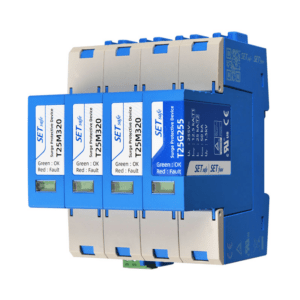

SD25TxxxA404, T1+T2
Uc: L-N: 150 … 385 VAC
Iimp (10/350μs): 11 … 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 50 kA
Protection Mode:
3+1 (L–N, N-PE) -

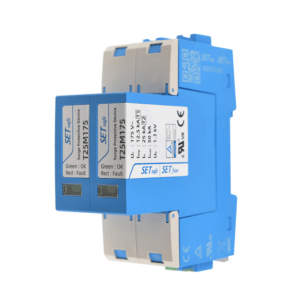

SD25TxxxL201
Uc: 150 … 320 VAC
Iimp (10/350μs): 11.0 … 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 50 kA
Protection Mode:
2+0 (L1 – G，L2 – G) -
SSPA0K05B Series
Uc: 6 … 33 VDC
In (8/20μs): 5 kA -
SD25TxxxA301/L302
Uc: 150 … 385 VAC
Iimp (10/350μs): 11.0 … 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 50 kA
Protection Mode:
2+1 (L1 – N， L2 – N，N – G) -

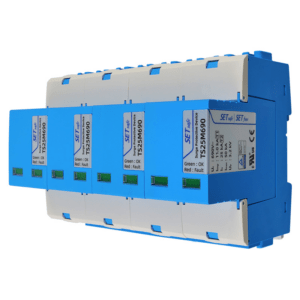

SD25TS, T1+T2
Uc: 1300 VAC
Iimp (10/350μs): 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 50 kA
Protection Mode: 3+0 (L – PE)
