Thermosicherungen für DC Anwendungen

  • SF Serie

    Rated Functioning Temp. (Tf): 115 – 139°C
    Rated Current (Ir): 3A
    Rated Voltage (Ur): DC 60V

    Download PDF

  • HS Serie

    Rated Functioning Temp. (Tf): 125 – 145°C
    Rated Current (Ir): 5A
    Rated Voltage (Ur): AC 500V | DC 200V

    Download PDF

  • M Serie

    Rated Functioning Temp. (Tf): 139°C
    Rated Current (Ir): 9A
    Rated Voltage (Ur): DC 60V

    Download PDF

  • HP Serie

    Rated Functioning Temp. (Tf): 125 – 145°C
    Rated Current (Ir): 10A
    Rated Voltage (Ur): AC 500V | DC 200V

    Download PDF

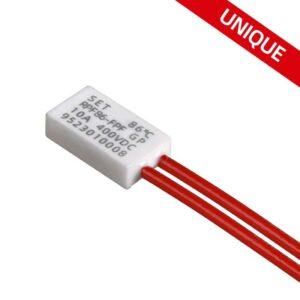

  • RPF series

    RPF Serie

    Rated Functioning Temp. (Tf): 86- 102°C
    Rated Current (Ir): 10A
    Rated Voltage (Ur): DC 400V

    Download PDF

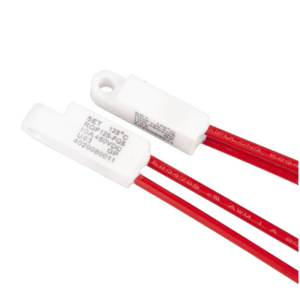

  • RQF Serie

    Rated Functioning Temp. (Tf): 86 – 187°C
    Rated Current (Ir): 10A
    Rated Voltage (Ur): DC 450V

    Download PDF

  • SD Serie

    Rated Functioning Temp. (Tf): 102 – 150°C
    Rated Current (Ir): 10A
    Rated Voltage (Ur): 125VDC

    Download PDF

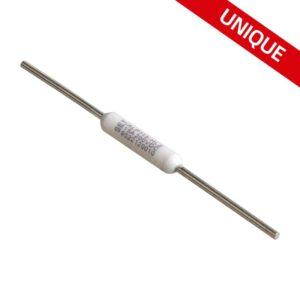

  • ALP Serie

    ALP Serie

    Rated Functioning Temp. (Tf): 102- 125°C
    Rated Current (Ir): 15A / 60A
    Rated Voltage (Ur): DC 180V / 200V

    Download PDF

  • HN Serie

    Rated Functioning Temp. (Tf): 125 – 145°C
    Rated Current (Ir): 15A
    Rated Voltage (Ur): AC 690V | DC 200V

    Download PDF

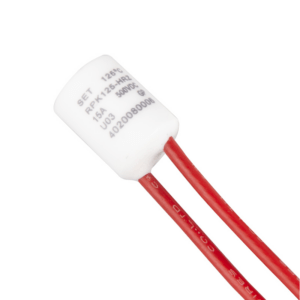

  • RPK Serie

    Rated Functioning Temp. (Tf): 102 – 150°C
    Rated Current (Ir): 15A
    Rated Voltage (Ur): DC 500V

    Download PDF

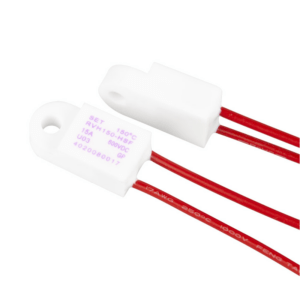

  • RVH Serie

    Rated Functioning Temp. (Tf): 102 – 187°C
    Rated Current (Ir): 15A
    Rated Voltage (Ur): DC 600V

    Download PDF

  • TD Serie

    Rated Functioning Temp. (Tf): 102 – 150°C
    Rated Current (Ir): 15A/16A
    Rated Voltage (Ur): DC 125V

    Download PDF

  • P Serie

    Rated Functioning Temp. (Tf): 102 – 136°C
    Rated Current (Ir): 20A
    Rated Voltage (Ur): AC 250V | AC 400V | AC 300V | DC 120V

    Download PDF

    Online-Shop

  • PD Serie

    Rated Functioning Temp. (Tf): 102 – 150°C
    Rated Current (Ir): 20A
    Rated Voltage (Ur): DC 125V

    Download PDF

  • TGH Serie

    Rated Functioning Temp. (Tf): 102 – 187°C
    Rated Current (Ir): 15A
    Rated Voltage (Ur): DC 850V

    Download PDF

  • TGxxxC Serie

    Rated Functioning Temp. (Tf): 86 – 150°C
    Rated Current (Ir): 15A | 20A
    Rated Voltage (Ur): AC 600V | DC 450V | DC 400V

    Download PDF

    Online-Shop

  • Q Serie

    Rated Functioning Temp. (Tf): 102 – 136°C
    Rated Current (Ir): 25A
    Rated Voltage (Ur): AC 250V | AC 400V | AC 300V | DC 120V

    Download PDF

    Online-Shop

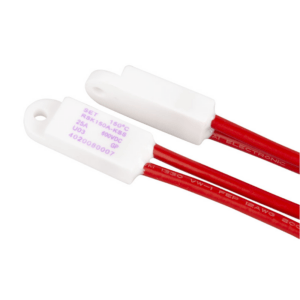

  • RSKxxxA Serie

    Rated Functioning Temp. (Tf): 102 – 187°C
    Rated Current (Ir): 25A
    Rated Voltage (Ur): DC 600V

    Download PDF

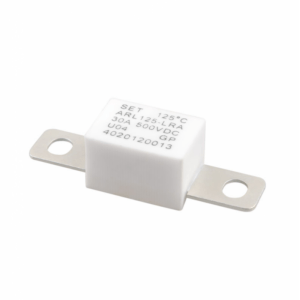

  • ARL Serie

    Rated Functioning Temp. (Tf): 86 – 187°C
    Rated Current (Ir): 30A
    Rated Voltage (Ur): DC 500V

    Download PDF

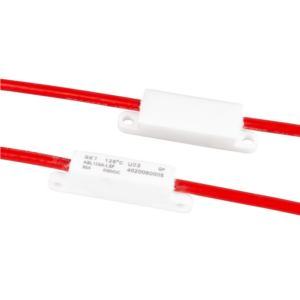

  • ASLxxxA Serie

    Rated Functioning Temp. (Tf): 102 – 187°C
    Rated Current (Ir): 30A
    Rated Voltage (Ur): DC 600V

    Download PDF

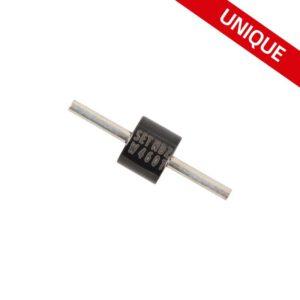

  • ADNxxxB series

    ADNxxxB Serie

    Rated Functioning Temp. (Tf): 205- 230°C
    Rated Current (Ir): 50A / 55A / 80A
    Rated Voltage (Ur): DC 48V

    Download PDF

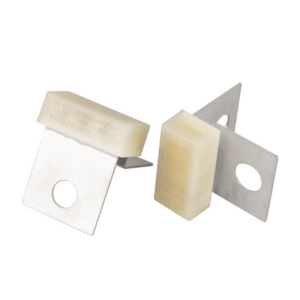

  • TVB Serie

    Rated Functioning Temp. (Tf): 102 – 136°C
    Rated Current (Ir): 50A
    Rated Voltage (Ur): DC 60V

    Download PDF

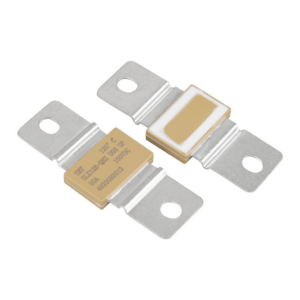

  • SLx Serie

    Rated Functioning Temp. (Tf): 86 – 187°C
    Rated Current (Ir): 25A | 30A | 40A | 50A | 60A | 80A
    Rated Voltage (Ur): AC 125V | DC 100V

    Download PDF

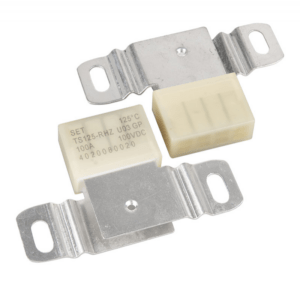

  • TS Serie

    Rated Functioning Temp. (Tf): 102 – 136°C
    Rated Current (Ir): 80A | 100A
    Rated Voltage (Ur): AC 250V | AC 125V | DC 100V

    Download PDF

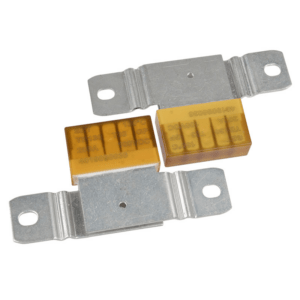

  • TB Serie

    Rated Functioning Temp. (Tf): 102 – 136°C
    Rated Current (Ir): 200A
    Rated Voltage (Ur): AC 125V | DC 100V

    Download PDF
