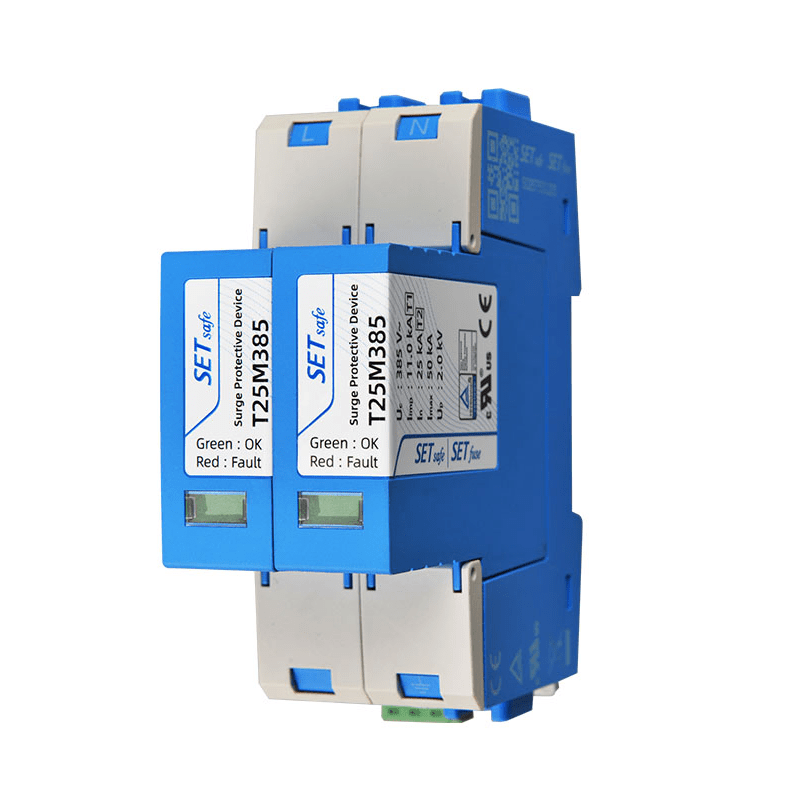

SD25TxxxL205, T1+T2

Uc: 150 … 550 VAC
Iimp (10/350μs): 7.5 … 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 50 kA
Protection Mode:
2+0 (L / N – PE)

Download PDF

Ähnliche Produkte

  • SD20/30R series, T2

    Uc: L-N: 385 VAC, N-PE: 255 VAC
    In (8/20μs): 20/30 kA
    Imax (8/20μs): 40/60 kA
    Protection Mode: 3+1 (L-N, N-PE)

    Download PDF

  • SD20/30R series, T2

    Uc: L-N: 385 VAC, N-PE: 255 VAC
    In (8/20μs): 20 / 30 kA
    Imax (8/20μs): 40/60 kA
    Protection Mode: 1+1 (L-N, N-PE)

    Download PDF

  • SD25TxxxL201

    Uc: 150 … 320 VAC
    Iimp (10/350μs): 11.0 … 12.5 kA
    In (8/20μs): 25 kA
    Imax (8/20μs): 50 kA
    Protection Mode:
    2+0 (L1 – G，L2 – G)

    Download PDF

  • SD25TxxxL100, T1+T2

    Uc: 150 … 680 VAC
    Iimp (10/350 μs): 5 … 12.5 kA
    In (8/20μs): 25 kA
    Imax (8/20μs): 40 kA
    Protection Mode: 1P (Ld – Ld)

    Download PDF
