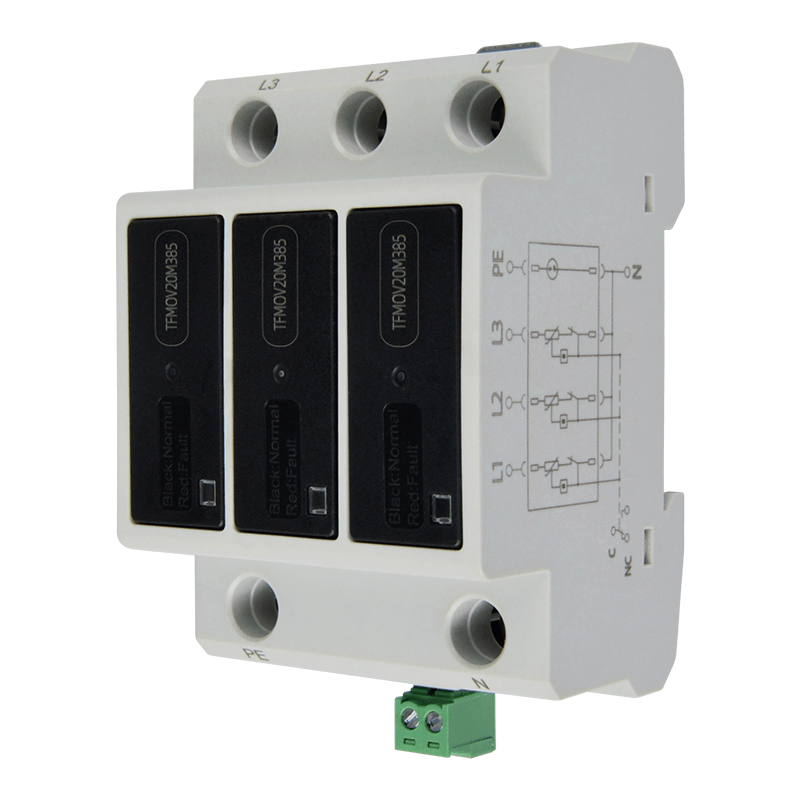

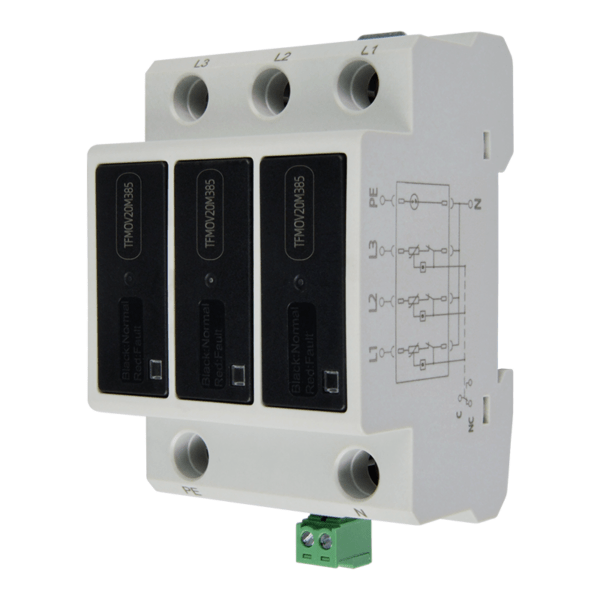

SD20S series, T2
Uc: L-N: 385 VAC
In (8/20 μs): 20 kA
Imax (8/20 μs): 40 kA
Protection Mode:
3+1 (L-N, N-PE)
Ähnliche Produkte
-
SD25TxxxA404, T1+T2
Uc: L-N: 150 … 385 VAC
Iimp (10/350μs): 11 … 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 50 kA
Protection Mode:
3+1 (L–N, N-PE) -
SD25TxxxL405, T1+T2
Uc: 150 … 680 VAC
Iimp (10/350μs): 5 … 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 50 kA
Protection Mode: 4+0 (L/N-PE) -
SD20H270A203-DC, T2
Uc: 300 VDC
In (8/20μs): 20 kA
Imax (8/20μs): 40 kA
Up: 1.0 kV
Protection Mode: + — -, – — PE -
SD25TxxxA301/L302
Uc: 150 … 385 VAC
Iimp (10/350μs): 11.0 … 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 50 kA
Protection Mode:
2+1 (L1 – N, L2 – N,N – G)
