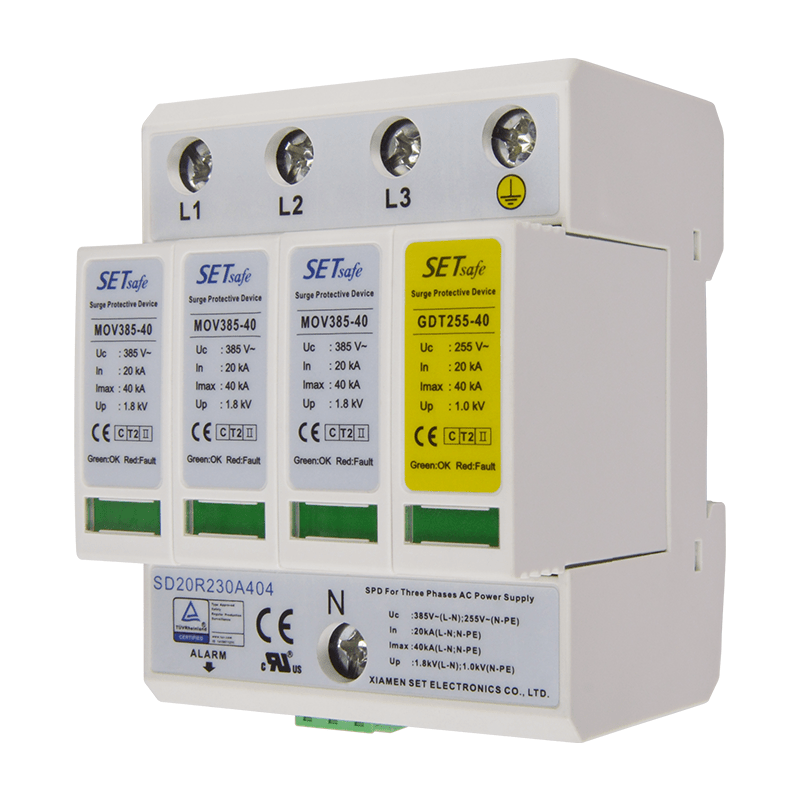

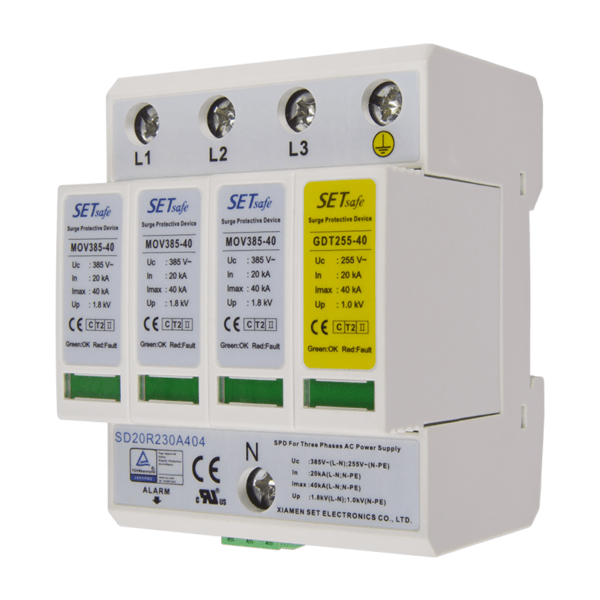

SD20/30R series, T2

Uc: L-N: 385 VAC, N-PE: 255 VAC
In (8/20μs): 20/30 kA
Imax (8/20μs): 40/60 kA
Protection Mode: 3+1 (L-N, N-PE)
