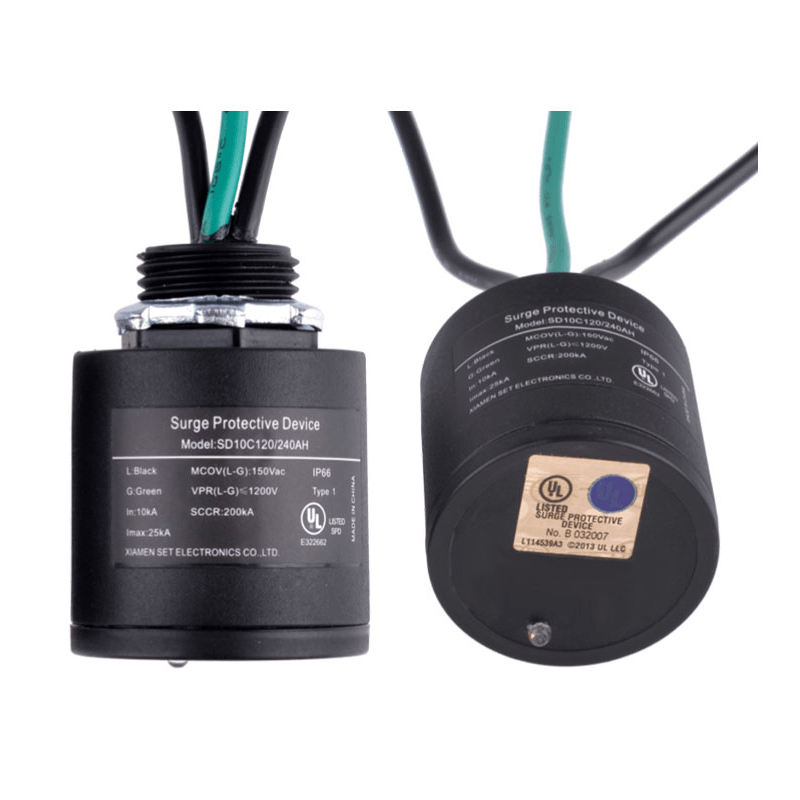

SD10C120/240 series

Max. Continuous Operating Voltage (Uc): 150 / 300 VAC
Nominal Discharge Current (In) (8 / 20 μs): 10 kA
Max. Discharge Current (Imax) (8 / 20 μs): 15 / 25 kA
UL 1449 Type 1 SPD

Download PDF

Ähnliche Produkte

  • SD05C series

    Max. Continuous Operating Voltage (Uc): 150 ~ 550 VAC
    Nominal Discharge Current (In) (8 / 20 μs): 5 kA
    Max. Discharge Current (Imax) (8 / 20 μs): 10 kA

    Download PDF

  • SD05K series

    Max. Continuous Operating Voltage (Uc): 150 / 320 / 420 VAC
    Nominal Discharge Current (In) (8 / 20 μs): 5 kA
    Max. Discharge Current (Imax) (8 / 20 μs): 10 kA

    Download PDF

  • SD10K series

    Max. Continuous Operating Voltage (Uc): 300 / 320 / 385 VAC
    Nominal Discharge Current (In) (8 / 20 μs): 10 kA
    Max. Discharge Current (Imax) (8 / 20 μs): 20 kA

    Download PDF

  • SD10C series

    Max. Continuous Operating Voltage (Uc): L-N: 150 ~ 550 VAC
    ominal Discharge Current (In) (8 / 20 μs): 10 kA
    Max. Discharge Current (Imax) (8 / 20 μs): 15 / 25 kA

    Download PDF
