| Specification | |||||||||||||
| Model | Tf | Fusing
Temp. |
Th | Tm | Ir | Ur | |||||||
| (°C) | (°C) | (°C) | (°C) | (A) | (V) | UL | cUL | VDE | PSE | CCC | KTL | RoHS
REACH |
|
| A0-5A-F | 84 | 82±2 | 65 | 203 | 5 | AC 250 | ● | ● | ● | ● | ● | ● | ● |
| A1-5A-F | 102 | 98±2 | 80 | 203 | 5 | AC 250 | ● | ● | ● | ● | ● | ● | ● |
| A2-5A-F | 115 | 112±3 | 95 | 203 | 5 | AC 250 | ● | ● | ● | ● | ● | ● | ● |
| A3-5A-F | 125 | 120±3 | 105 | 203 | 5 | AC 250 | ● | ● | ● | ● | ● | ● | ● |
| A4-5A-F | 130 | 126±2 | 107 | 203 | 5 | AC 250 | ● | ● | ● | ● | ● | ● | ● |
| A5-5A-F | 135 | 131±3 | 115 | 203 | 5 | AC 250 | ● | ● | ● | ● | ● | ● | ● |
| A7-5A-F | 138 | 135±2 | 115 | 203 | 5 | AC 250 | ● | ● | ● | ● | ● | ● | ● |
| A12-5A-F | 145 | 140±2 | 126 | 203 | 5 | AC 250 | ● | ● | ● | ● | ● | ● | ● |
| A8-5A-F | 150 | 145±3 | 128 | 203 | 5 | AC 250 | ● | ● | ● | ● | ● | ● | ● |

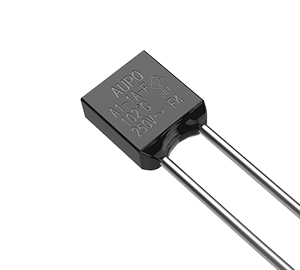

A-F Serie
Rated Functioning Temp. (Tf): 84 – 160°C
Rated Current (Ir): 2 A
Rated Voltage (Ur): 250VAC
