The CRX series are platinum temperature sensors in a ceramic housing with a small, round design. They offer high long-term stability, excellent precision over a wide temperature range and outstanding compatibility. These sensors are used in white goods, HVAC, power generation, medical and industrial devices and machines. The operating temperature range of the CRX series is -200°C to +600°C. The CRX series is available in tolerance classes 1/5B (F0.06) and 1/10B (F0.03).
CRX Series – Platinum temperature sensor in ceramic housing
-200°C … +600°C
Pt100, Pt200, Pt500, Pt1000
F0.3 (cl. B) … F0.03 (cl. 1/10B)
TCR 3850ppm/K (3810, 3750 etc.)
On request other wire lengths, wire material or insulation of the connecting wires
Related products
-

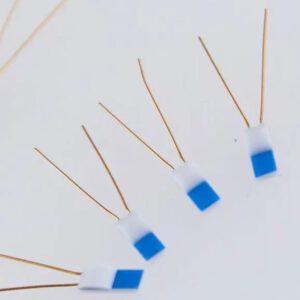

CRZ Series
-70°C … +400°C (+500°C)
Pt100, Pt500, Pt1000
F0.6 (cl. 2B) … F0.1 (cl. 1/3B) -
Pt100 TO92 housing
-50°C … +150°C
Pt100
F0.3 (Kl. B)
TCR 3850 ppm/K
MOQ: 10,000 pieces
Alternative to the discontinued (HERAEUS) YAGEO Nexensos 32209210
Other wire lengths, wire material or insulation of the connecting wires on request -
CRAG-2023-1000-B(Ni)-TCR3750
2.0 x 2.3 mm
CRAG-2023-1000-B(Ni)-TCR3750
Pt1000 platinum measuring resistor class B
Temperature range -200°C … +600°C
Tolerance class B (F 0.3) -70°C … +600°C
Dimensions of sensor element 2.0 x 2.3 x 1.1mm
Connection wire: Nickel = Ø 0.25x10mm
Special: TCR 3750ppm/K
Other wire lengths, wire material or insulation of the connection wires on request -

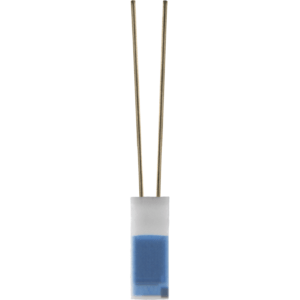

CREG Series
-70°C … +500°C
Pt100, Pt1000
F0.6 (cl. 2B) … F0.1 (cl. 1/3B)
